Guide Shoe – Model 180 050
The 180 050 guide holder is used in elevator applications with very high weight and in freight elevators.
Its injection-molded aluminum body provides stable guidance and long service life. It provides rigid, balanced, and precise guidance by making contact with the rail over a larger surface area.
Guide Shoe 180 050 is suitable for 9–19 mm guide rails, with body dimensions of 180 x 120 x 65 mm.
> High Load Capacity
> Freight Elevators and High-Traffic, Multi-Stop Applications
> Aluminum Alloy Body
> Rigid, Balanced, and Precise Guidance with Enhanced Rail Surface Contact

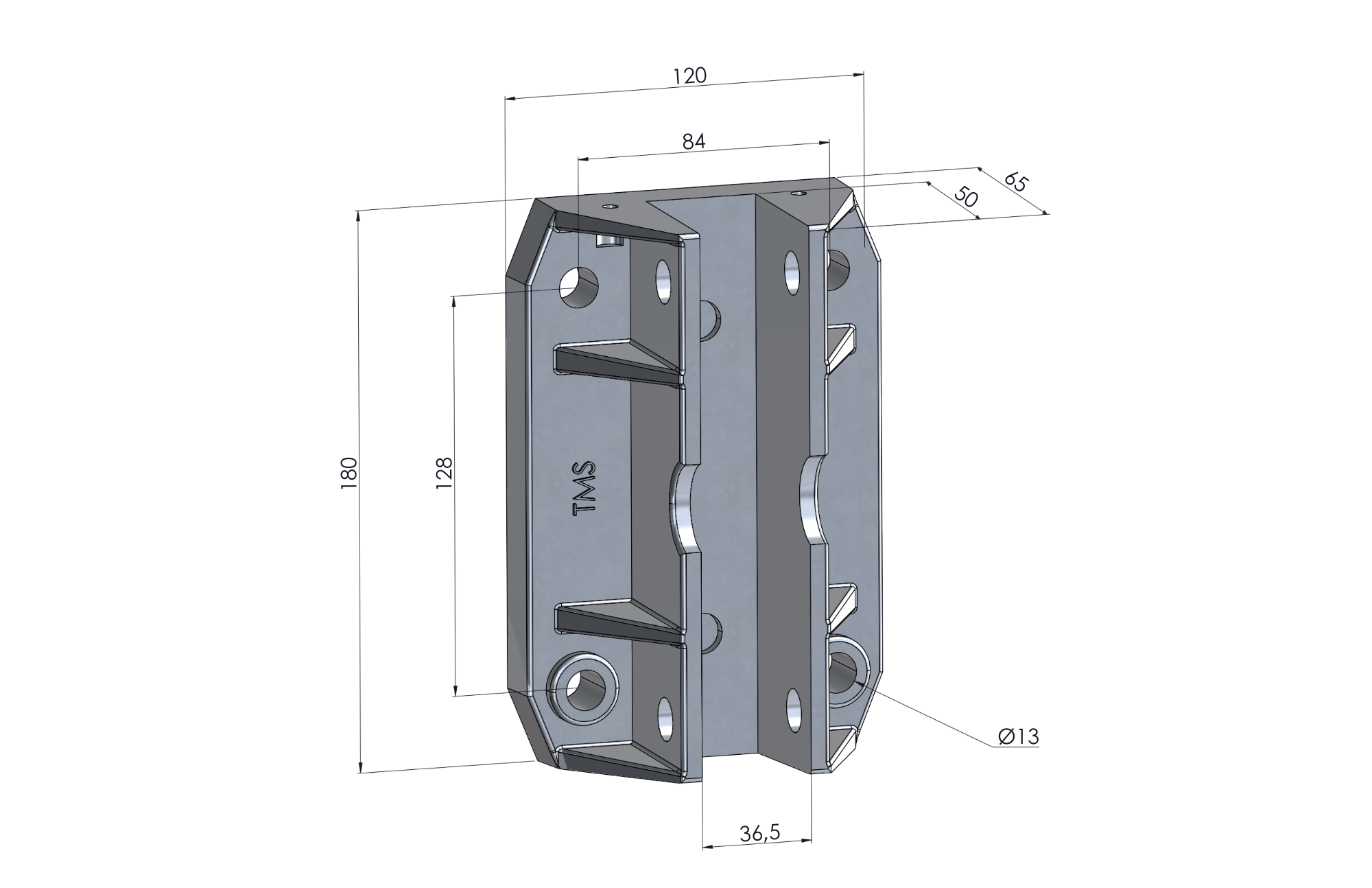

Elevator Guide Shoe Model 180 050 Features
Special alloy aluminium body · 180 x 120 x 65 mm
0.95 kg weight · 9–19 mm rail width
Product Name | Guide Shoe 180 050 |
Product Type | Elevator guide shoe |
Body Form | Flat |
Material | Special alloy aluminium |
Length | 180 mm |
Width | 120 mm |
Depth | 65 mm |
Suitable Rail Width | 9 –19 mm |
Suitable Rail Oiler | Y145 |
Suitable Inserts | See the table below |
Weight | 0.95 kg |
Application | Above-standard weight and freight elevators. |

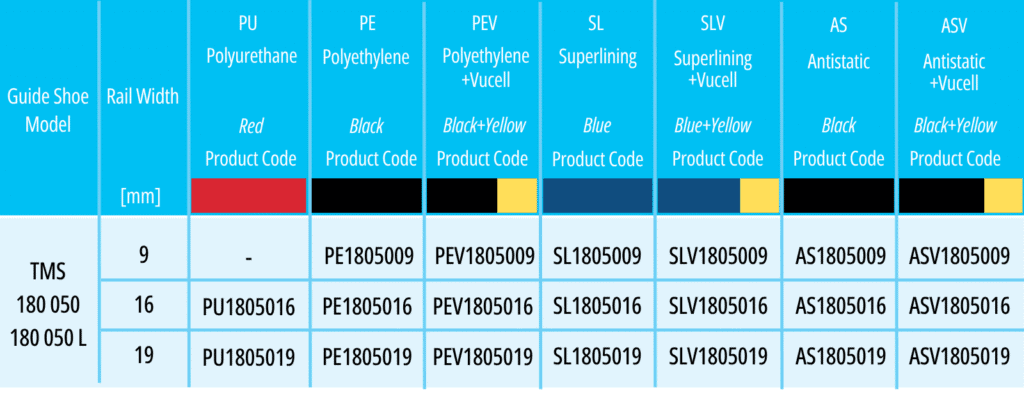

Compatible Rail Widths and Insert Options
The 180 050 model is used with guide shoe inserts for rail widths from 9 mm to 19 mm.
It is compatible with the following guide holder insert materials:
- PE (Polyethylene PE 1000)
- PEV (Polyethylene + Vucell)
- SL (High-Density PE 1000)
- SLV (High-Density + Vucell)
- AS (Antistatic PE 1000)
- ASV (Antistatic + Vucell)
The applicable insert codes and their corresponding rail width combinations are specified in the table.
Suitable Rail Lubricator
Rail Lubricator Y145
Oil Volume: 125 ml
