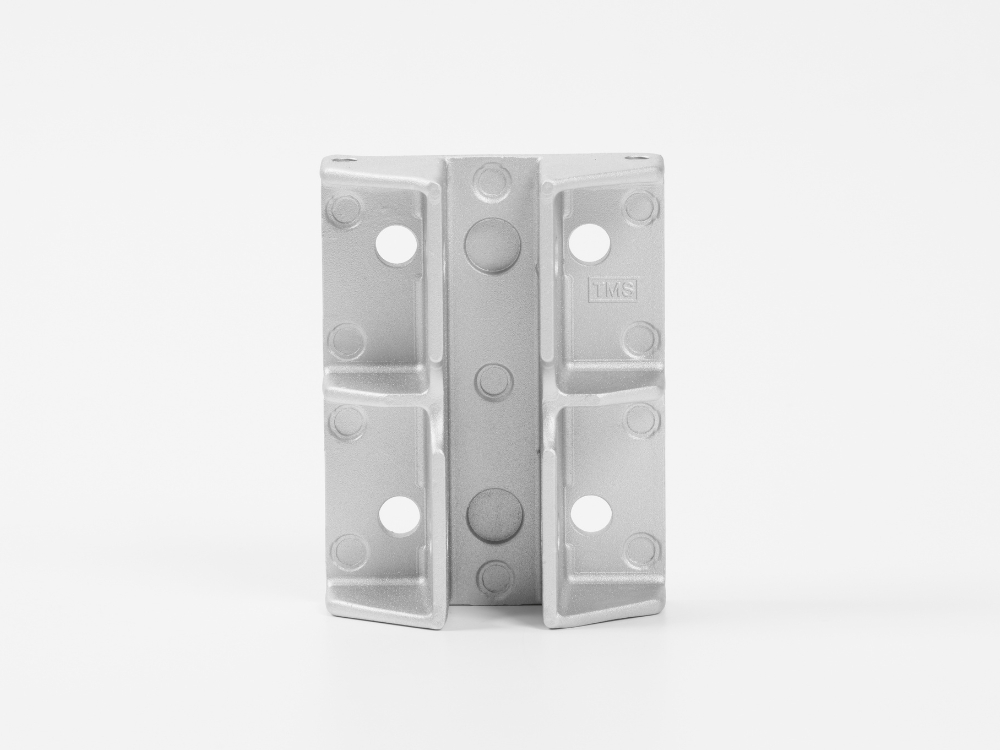

Guide Shoe – 100 020
The guide shoe 100 020 is manufactured from special alloy aluminum using the injection molding process. It is designed for low-load elevator applications and the counterweight side. Compared to welded sheet metal guides, the guide show offers tighter dimensional and geometric tolerances, ensuring balanced load distribution and stable guidance along the rail.

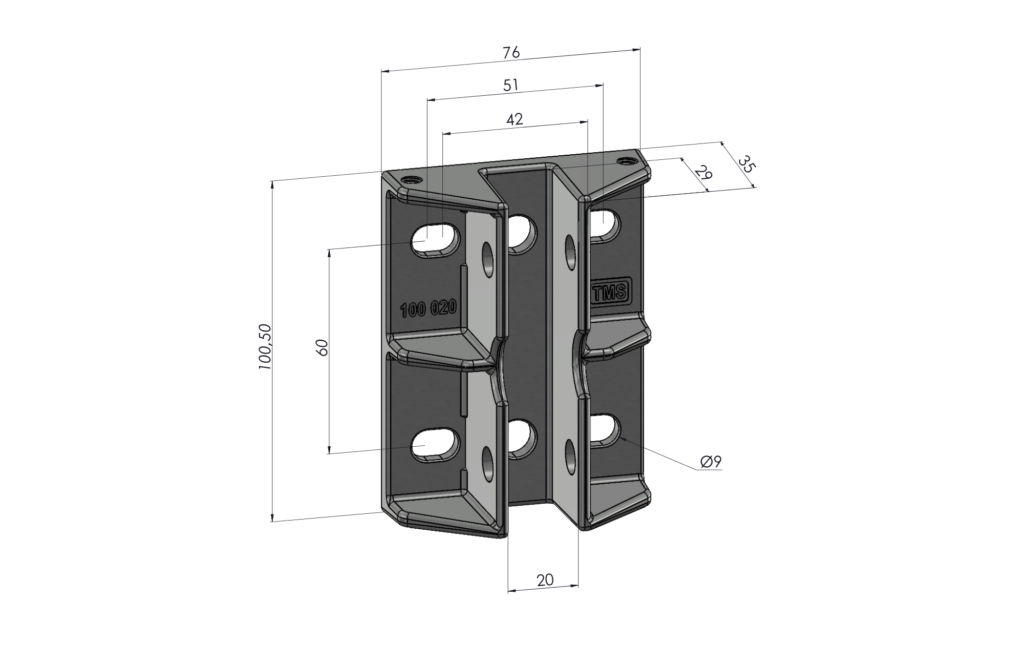

Guide Shoe 100 020 is suitable for 5–16 mm guide rails and has body dimensions of 100 × 75 × 35 mm.
> High Geometric Accuracy
> Low Weight – Balanced Structure
> Injection-Molded Aluminum Body
Elevator Guide Shoe Model 100 020 Features
Special alloy aluminium body · 5–16 mm rail width
0.17 kg weight · 100 x 75 x 35 mm
Product Name | Guide Shoe 100 020 |
Product Type | Elevator guide shoe |
Body Form | Flat |
Material | Special alloy aluminium |
Length | 100 mm |
Width | 75 mm |
Depth | 35 mm |
Suitable Rail Width | 5 – 16 mm |
Suitable Rail Oiler | Y110 |
Suitable Inserts | See the table below |
Weight | 0.17 kg |
Application | Low-load elevator applications or the counterweight side |
Compatible Rail Widths and Insert Options
The 100 020 model is used with guide shoe inserts suitable for rail widths ranging from 5 mm to 16 mm.
It is compatible with the following guide holder insert materials:
- PA (Polyamide)
- PU (Polyurethane)
- PE (Polyethylene PE1000)
- SL (High-Density PE1000)
- AS (Antistatic PE1000)

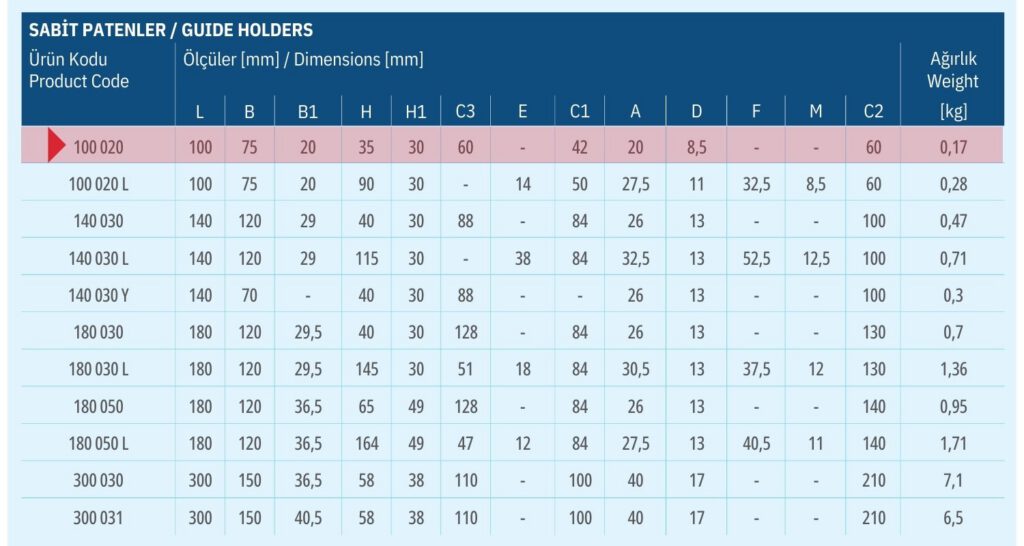

The applicable insert codes and their corresponding rail width combinations are specified in the table.
Suitable Rail Lubricator Model
Rail Lubricator Y110
Oil Capacity: 80 ml
