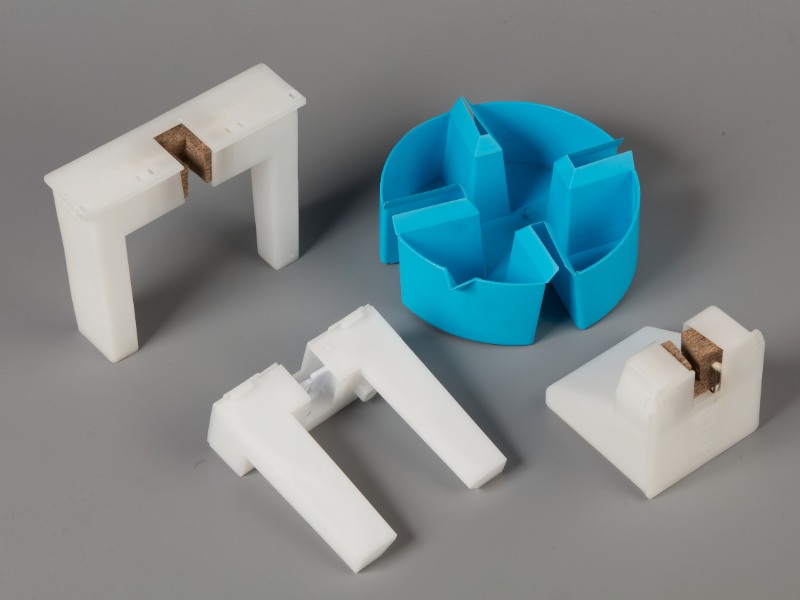

Rail Lubricators and Oil Collectors
Rail lubricators and oil collectors are components used in elevator guidance systems to provide controlled lubrication and help keep the operating area clean. TMS Lift rail lubricators and oil collection containers are made of high-strength polypropylene.
To see the available options, please visit the “Rail Lubricator Models” section. For dimensions and technical data, please see the “Dimensions” section.
> Controlled and efficient lubrication
> Drip-free compact design
> Durable polypropylene body
> Special felt system
Rail Lubricator and Oil Collection Cup Models

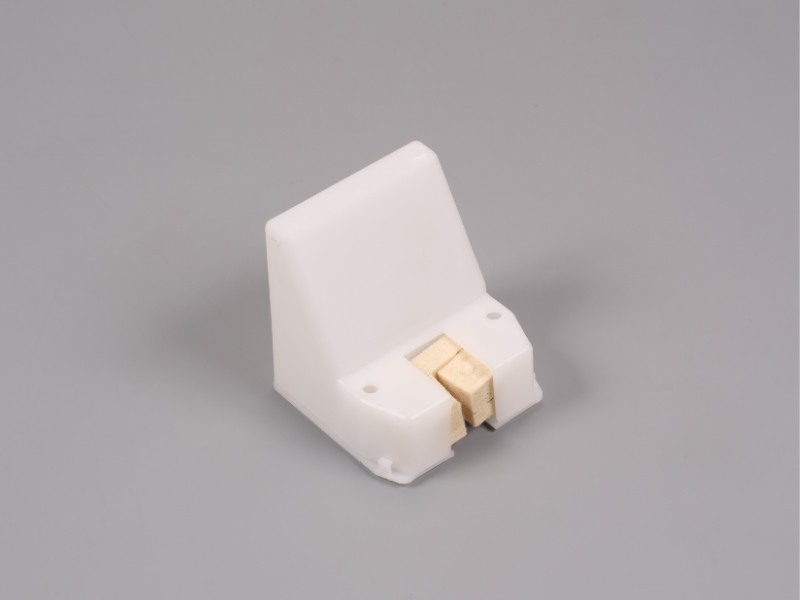

Rail Lubricator
Model Y80
Oil Volume: 180 ml
Rail Lubricator
Model Y110
Oil Volume: 80 ml

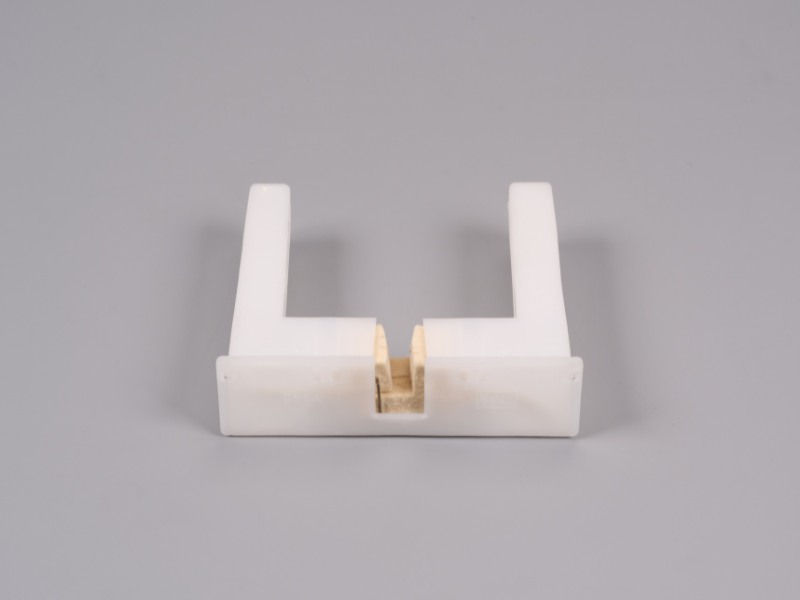

Rail Lubricator
Model Y145
Oil Volume: 125 ml

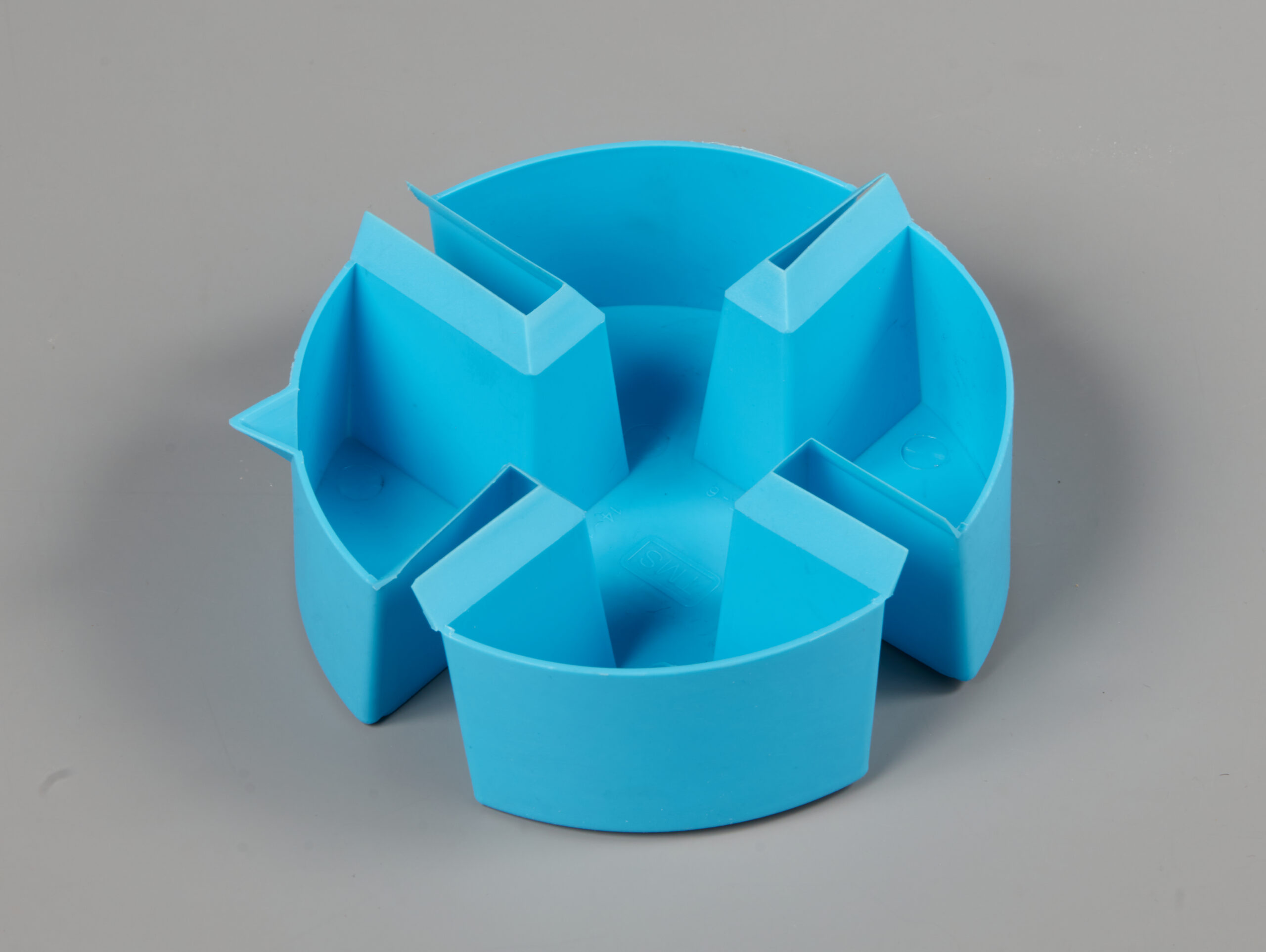

Oil Collector
Model YTK-1
Oil Volume: 500 ml
Rail Lubricators — Selection Guide
Select the rail lubricator by guide shoe type (flat / L-shaped), felt type, and oil volume. All models are designed for easy installation easy installation and compatible use with TMS Lift guide shoes.
- Y80 (Wool felt, 180 ml): compatible with L-shaped guide shoes. Wool felt provides high oil absorption and intensive oil transfer for maximum lubrication.
- Y110 (Polyester felt, 80 ml): compatible with flat and L-shaped guide shoes; controlled lubrication with lower oil volume.
- Y145 (Wool felt, 125 ml): compatible with flat and L-shaped guide shoes; higher oil transfer and higher capacity than polyester felt.

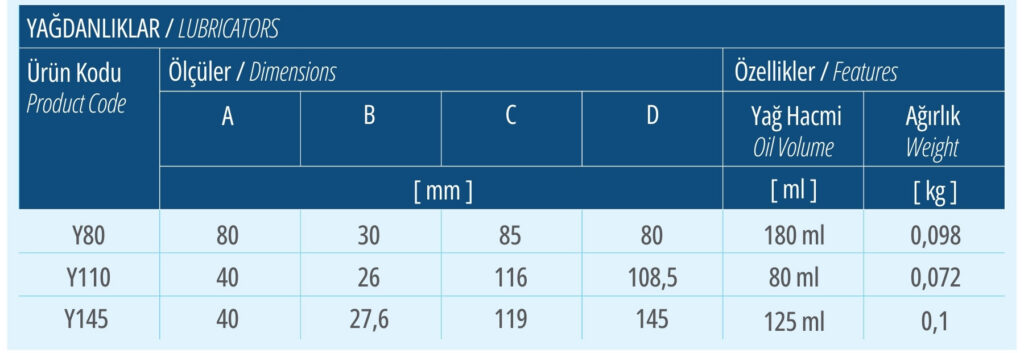

Dimensions of Rail Lubricator Models

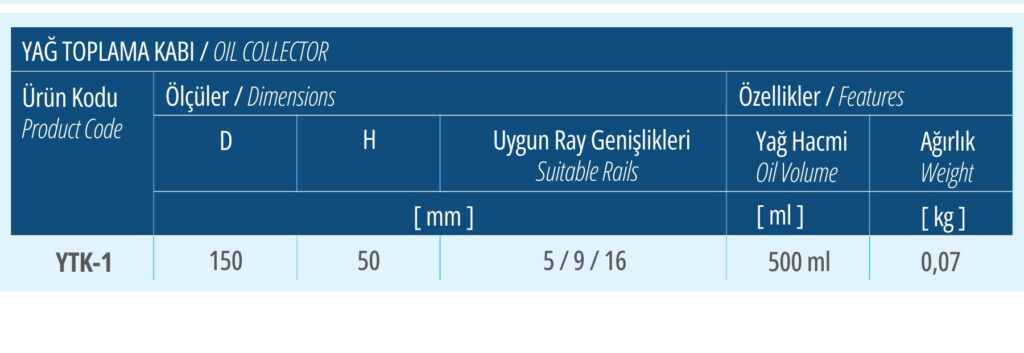

Dimensions of Oil Collector Model YTK-1
