High Density PE 1000 Guide Shoe Insert

High density guide shoe insert PE 1000 is a Superlining UHMW-PE guide shoe insert developed for elevator applications where the wear performance of standard PE 1000 is insufficient.
It offers higher wear resistance, very good tribological properties, and long service life in demanding guide rail conditions.

high density elevator guide shoe insert (superlining pe 1000)

> 20% higher wear resistance compared to standard PE 1000

> Suitable for demanding guide rail contact conditions

> Long service life

high-density pe1000 guide shoe insert with special alloy aluminium guide shoe

superlining guide shoe insert with special alloy aluminium guide shoe and rail lubricator

High-Density PE 1000 Guide Shoe Insert Specifications

Product Name	High-Density PE 1000 Guide Shoe Insert
Product Type	Elevator guide shoe insert
Product Codes	SL, SLV, SL2V (see the table below for details)
Material	PE 1000 Superlining
Material Grade	UHMW-PE / ultra-high-molecular-weight polyethylene
Material Features	Very good tribological properties, high wear resistance, very high abrasion resistance, and impact strenght
Suitable Max. Speed	Up to 3 m/s
Wear Resistance	Approximately 20% higher wear resistance compared to standard PE 1000
Load Capacity*	Under 1% deformation: 10 N/mm² in static conditions; 1–3 N/mm² in dynamic conditions
Abrasion Test Performance	About 20% higher wear resistance than low-carbon steel and aluminum according to ISO 15527 sand–slurry abrasion tests
Temperature Range, °C	–200 to +80
Lubrication	Can be used without lubrication depending on the rail quality
Rail Width	5 – 29 mm
Compatible Guide Shoes	TMS 100 020, TMS 100 020 L, TMS 140 030, TMS 140 030 L, TMS 180 030, TMS 180 030 L, TMS 180 050, TMS 180 050 L, TMS 300 030, TMS 300 031 (see the table below for details)
Documents	PE1000 Superlining Data Sheet, PE1000 Superlining Material Safety Report,

*Note: Load capacity is calculated according to the contact surface area of the insert. Rail width, guide shoe model, elevator speed, and operating conditions should be evaluated together when selecting the suitable product.

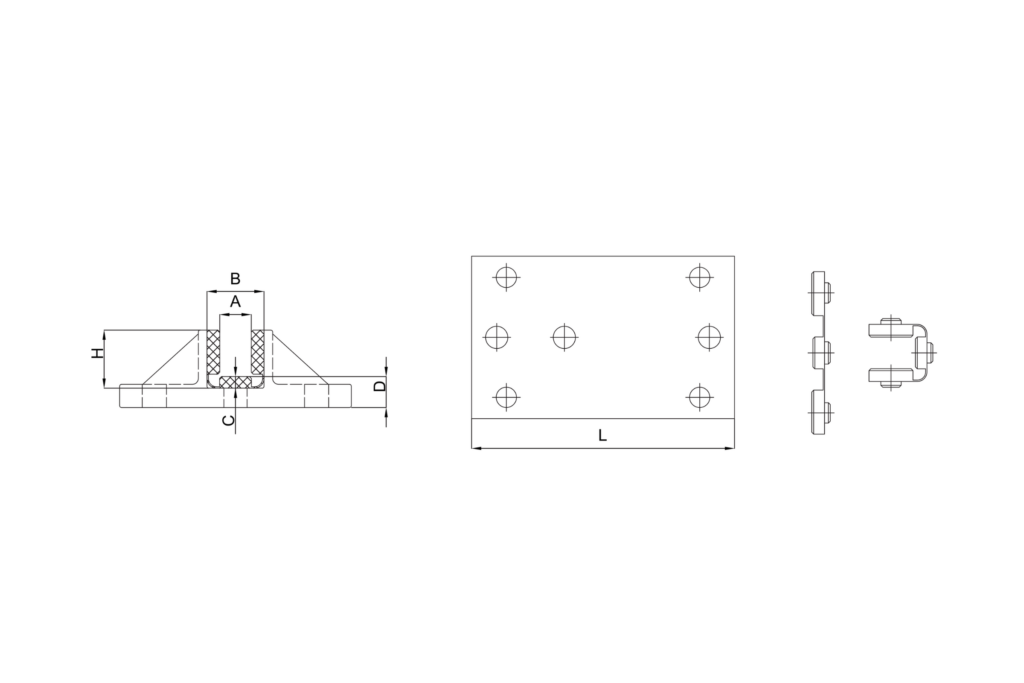

Technical Drawing

The technical drawing shows the L, A, B, C, D, and H dimensions used in the model table.
Dimension values vary according to rail width and compatible guide shoe model.

SL Model Options and Dimensions

High-Density (Superlining) PE 1000 guide shoe inserts are available for different rail widths and compatible TMS Lift guide shoe models.

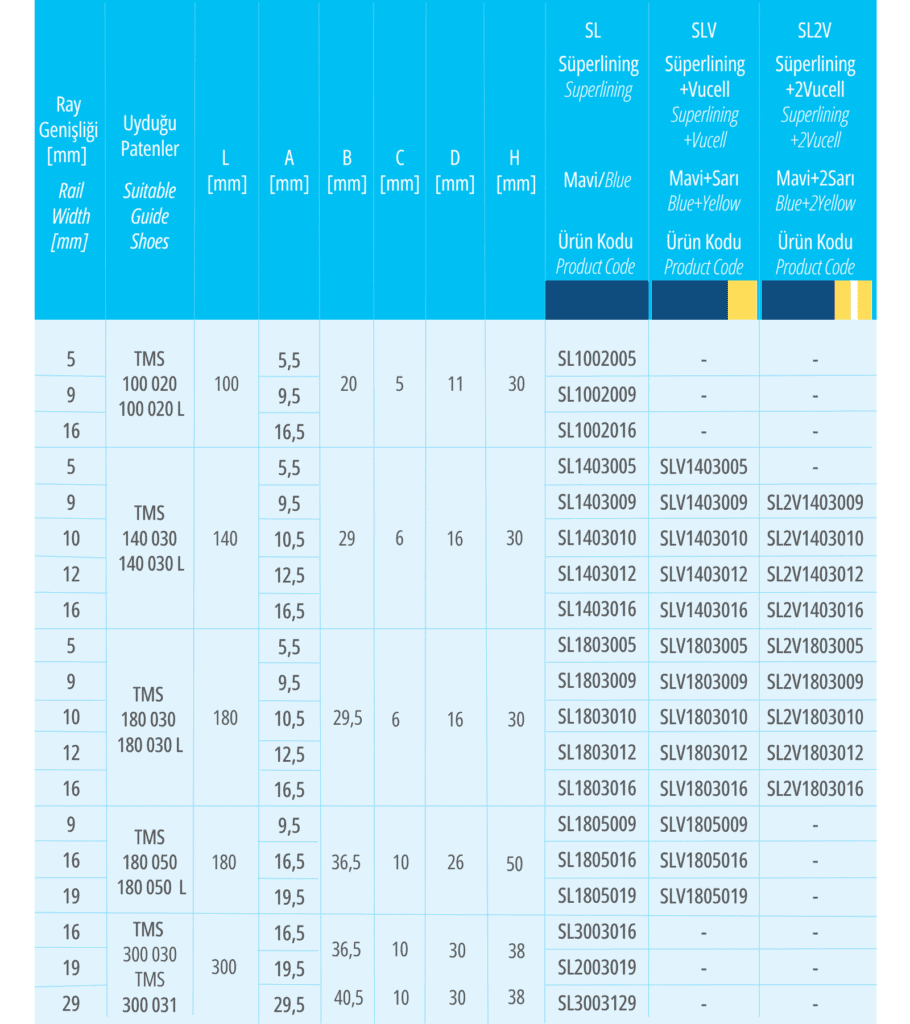

The table below shows rail width, guide shoe compatibility, main dimensions, and product codes for SL, SLV, and SL2V versions. The “V” versions are manufactured with Vucell elastic impact-absorber padding.
