High-Speed Roller Guide YHMP-2
YHMP-2 is a high-speed roller guide designed for elevator car applications, with a rated speed of up to 2.5 m/s and a maximum load (P+Q) of 2500 kg. Its spring-loaded construction helps reduce vibration and noise, supporting stable and comfortable guidance.
> High-Speed Applications
(vmax = 2.5 m/s)
> Max. Load (P+Q): 2500 kg
> Vucell + PU Spring-Loaded Vibration-Damping Construction
Roller Guide YHMP-2 Features
The rollers used in the YHMP-2 High-Speed Roller Guide feature cores manufactured from heat-treated aluminum alloy. The special aerodynamic core design enables rapid dissipation of heat generated on the roller at high operating speeds.
The outer surface of the rollers is coated with ether-based polyurethane with a hardness of 80–85 Shore A. The logarithmic crown profile, resembling a herringbone pattern, ensures balanced load control on the roller surface, providing low rolling resistance and high wear resistance.
The spring-loaded arm structure contributes to effective damping of vibration and noise at high speeds.
2.5 m/s max. speed · 2500 kg max. load
Car Side · 5–16 mm rail width
Roller A Ø100 × 26 mm · 85 Shore A PU coating
Vucell + PU spring

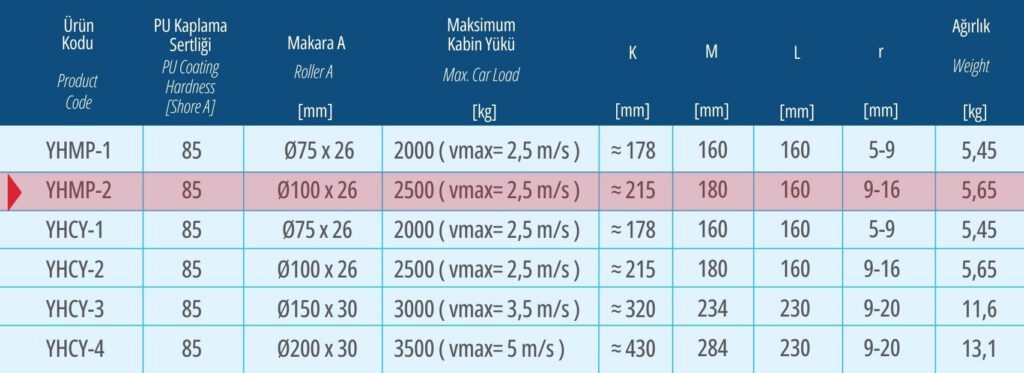

Product Name | High-Speed Roller Guide YHMP-2 |
Product Type | Elevator roller guide |
Maximum Speed | 2.5 m/s |
Max. Load (P+Q) | 2500 kg |
Application | Car side |
Body material | Cast iron |
Roller A | Ø100×26 mm |
Roller Core Material | Heat-treated aluminium alloy |
Roller Coating Material | Ether-based polyurethane |
PU Coating Hardness | 85 Shore A |
Rail Width (r) | 5–16 mm |
Spring type | VUcell+PU |
Weight | 5.65 kg |
