High-Speed Roller Guide YHMP-1
The YHMP-1 high-speed roller guide is designed for the counterweight side of elevator systems at speeds up to 2.5 m/s with a maximum car load of 2000 kg. Its spring-loaded construction dampens vibration and noise, ensuring stable and comfortable guidance.
> High-Speed Applications
(vmax = 2.5 m/s)
> Max. Load (P+Q): 2000 kg
> VUcell + PU Spring-Loaded Vibration-Damping Construction
Roller Guide YHMP-1 Features
The rollers used in the YHMP-1 High-Speed Roller Guide feature cores manufactured from heat-treated aluminum alloy. The special aerodynamic core design enables rapid dissipation of heat generated on the roller at high operating speeds.
The outer surface of the rollers is coated with ether-based polyurethane with a hardness of 80–85 Shore A. The logarithmic crown profile, resembling a herringbone pattern, ensures balanced load control on the roller surface, providing low rolling resistance and high wear resistance.
The spring-loaded arm structure contributes to effective damping of vibration and noise at high speeds.
2.5 m/s max. speed · 2000 kg max. load
Counterweight · 5–16 mm rail width
Roller A Ø75 × 26 mm · 85 Shore A PU coating
Vucell + PU spring

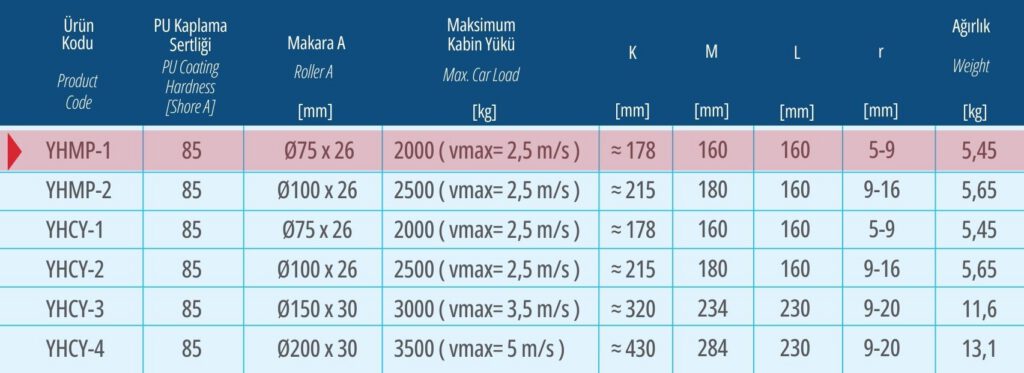

Product Name | High-Speed Roller Guide YHMP-1 |
Product Type | Elevator roller guide |
Maximum Speed | 2.5 m/s |
Max. Load (P+Q) | 2000 kg |
Application Side | Counterweight |
Body material | Cast iron |
Roller A | Ø75 × 26 mm |
Roller Core Material | Heat-treated aluminium alloy |
Roller Coating Material | Ether-based polyurethane |
PU Coating Hardness | 85 Shore A |
Rail Width (r) | 5–16 mm |
Spring type | Vucell+PU |
Weight | 5.45 kg |
