Roller Guide – KP-4
KP-4 is a high-load elevator roller guide for car-side applications, suitable for 5–16 mm guide rail widths. It features a high-strength aluminium alloy body with an adjustable construction and supports a maximum Roller A load of 4000 N.
> Car Side Applications
> High-Strength Aluminum Housing
> 4000 N Load Capacity (Roller A)
> Adjustable Rail Width
(5–16 mm)
Roller Guide KP-4 for Cabin
High-strength aluminum alloy · 166 × 137.5 × 266 mm
Roller A Ø125 × 40 mm · Roller B Ø100 × 20 mm
93 Shore A PU coating · 5–16 mm rail width
Product Name | Roller Guide KP-4 |
Product Type | Elevator roller guide |
Application Side | Car/cabin side |
Max. Speed | 1.6 m/s |
Max. Load on Roller A | 4000 N at a speed of 2.5 m/s |
Rail Compatibility | 5–16 mm |
Body Material | High-strength aluminum alloy |
Roller Coating | Ether-based polyurethane |
PU Coating Hardness | 93 Shore A |
Roller A | Ø125 × 40 mm |
Roller B | Ø100 × 20 mm |
Housing Dimensions | L: 156 mm, M: 137.5 mm, K: max. 266 mm |
Approx. Weight | 7.25 kg |

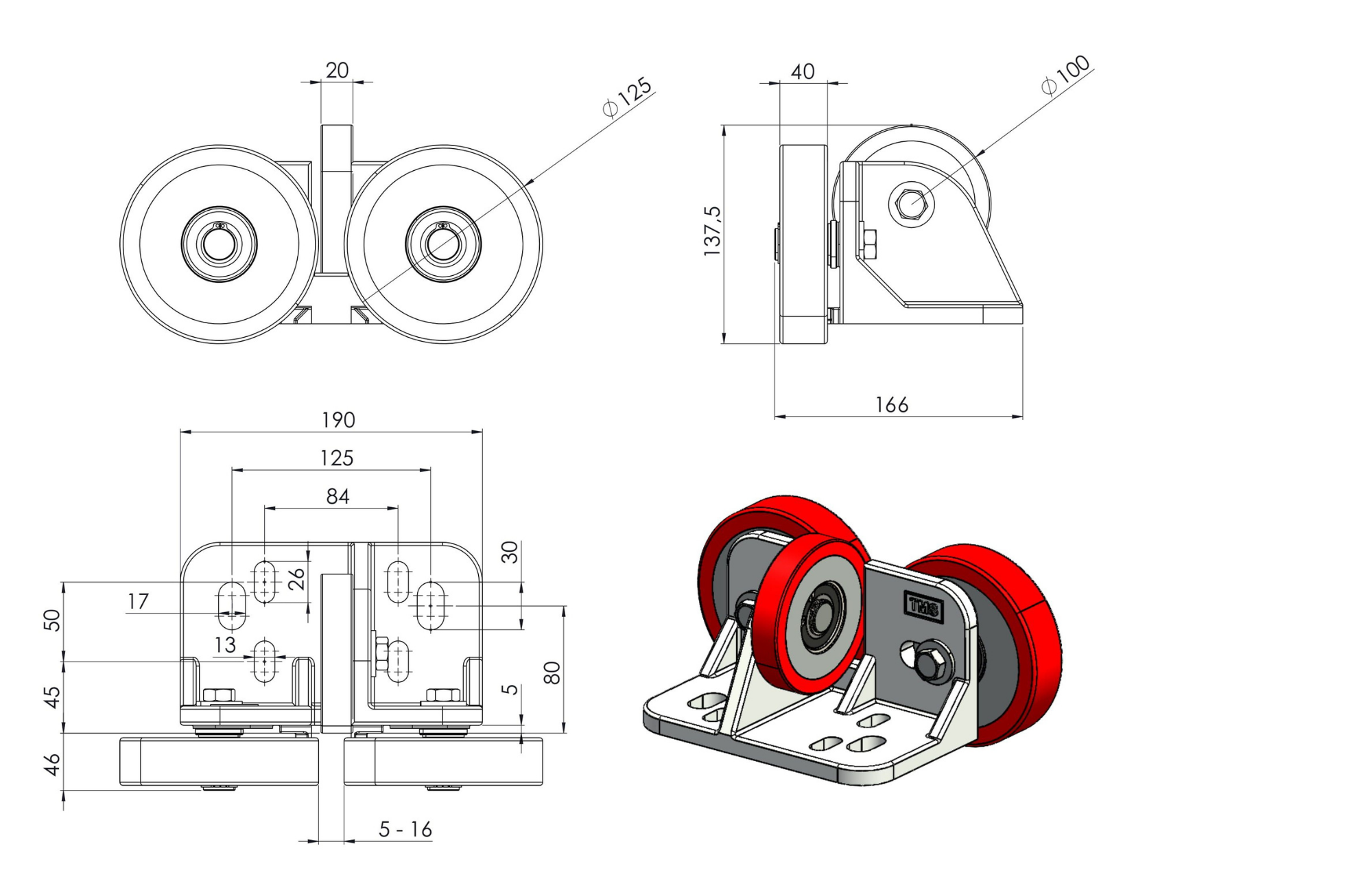

Roller Guide Model KP-4 Technical Drawing
