Roller Guide – KAP-2
The KAP-2 roller guide is designed for the counterweight side of elevator systems.
Its high-strength aluminum alloy body provides a lightweight and rigid structure. The adjustable construction supports compatibility with 5–16 mm rail sizes and a maximum Roller A load of 1200 N.
> Counterweight Side Applications
> High-Strength Aluminum Housing
> 5–16 mm Rail Adjustment
> Max. Roller A Load: 1200 N

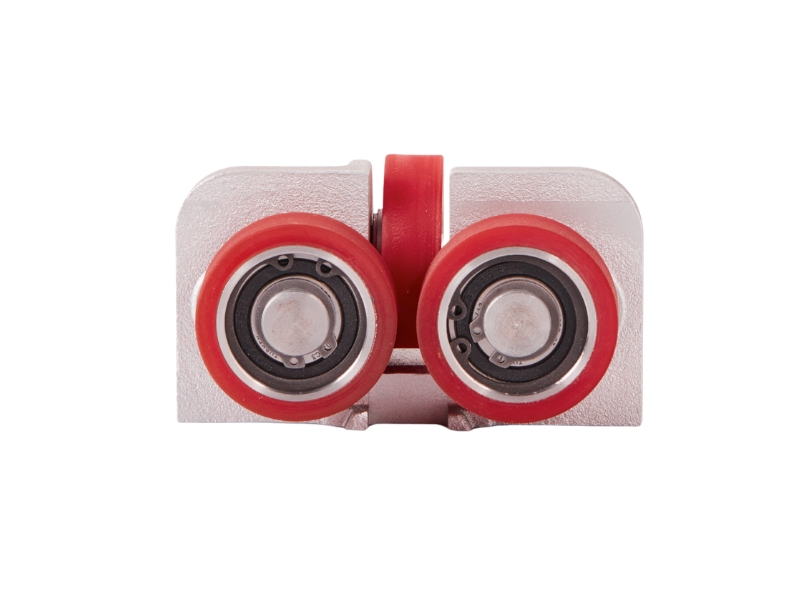

Roller guide KAP-2 for counterweight
High-strength aluminum alloy · 115 × 93 × 65 mm
Roller A Ø70 × 18 mm · Roller B Ø50 × 15 mm
93 Shore A PU coating · 5–16 mm rail width
Product Name | Roller Guide KAP-2 |
Product Type | Elevator roller guide |
Application Side | Counterweight side |
Max. Speed | 1.6 m/s |
Max. Load on Roller A | 1200 N at a speed of 2.5 m/s |
Rail Compatibility | 5–16 mm |
Body Material | High-strength aluminum alloy |
Roller Coating | Ether-based polyurethane |
PU Coating Hardness | 93 Shore A |
Roller A | Ø70 × 18 mm |
Roller B | Ø50 × 15 mm |
Housing Dimensions | L: 93 mm, M: 70 mm, K: max. 149 mm |
Approx. Weight | 1.25 kg |

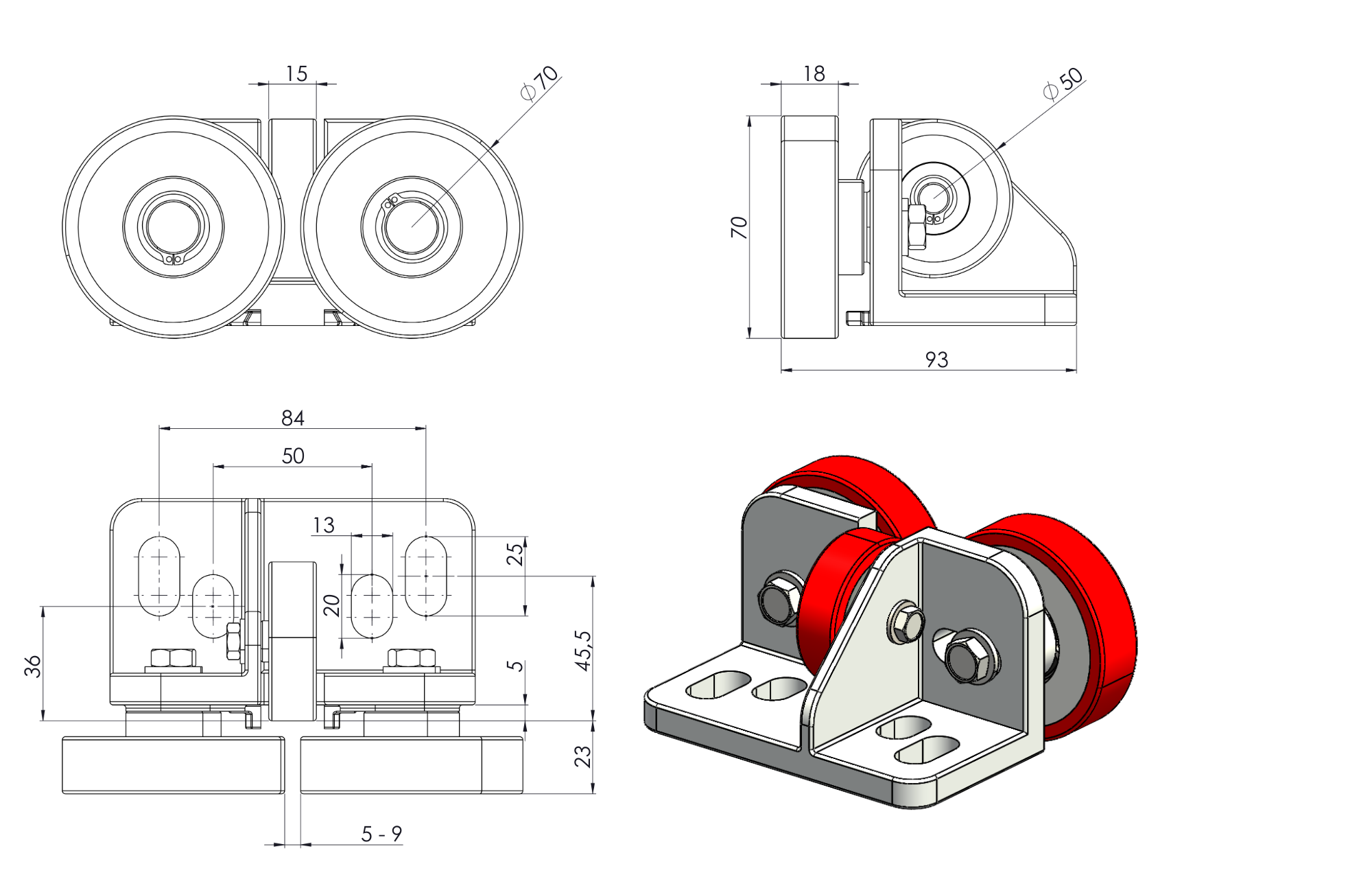

Roller Guide Model KAP-2 Technical Drawing
