Roller Guide – KP-2
The KP-2 roller guide is designed for the car side of elevator systems.
Its high-strength aluminum alloy body provides a lightweight and rigid structure. The adjustable construction supports compatibility with 5–20 mm rail sizes and a maximum Roller A load of 3000 N.
> Car Side Applications
> High-Strength Aluminum Housing
> 3000 N Load Capacity (Roller A)
> Adjustable Rail Width
(5–20 mm)

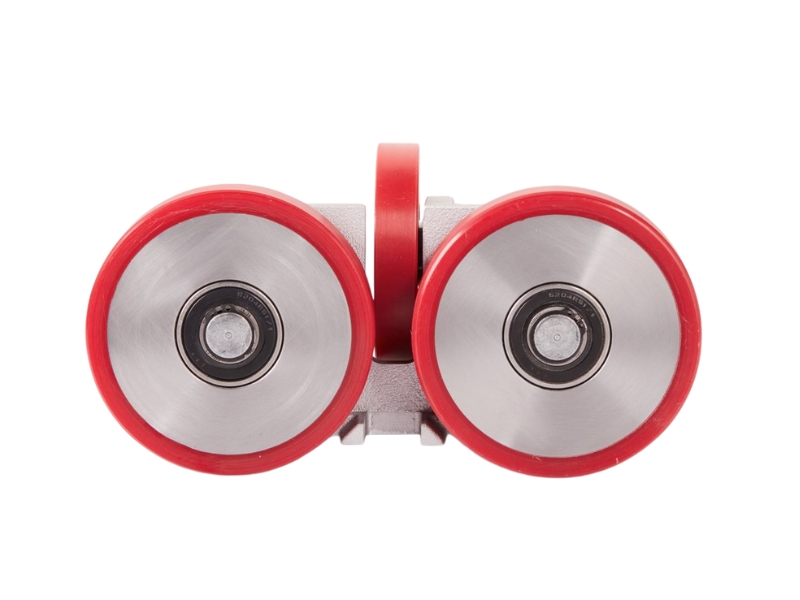

Roller Guide KP-2 for Cabin
High-strength aluminum alloy · 166 × 125 × 220 mm
Roller A Ø100 × 40 mm · Roller B Ø100 × 20 mm
93 Shore A PU coating · 5–20 mm rail width
Product Name | Roller Guide KP-2 |
Product Type | Elevator roller guide |
Application Side | Car/cabin side |
Max. Speed | 1.6 m/s |
Max. Load on Roller A | 3000 N at a speed of 2.5 m/s |
Rail Compatibility | 5–20 mm |
Body Material | High-strength aluminum alloy |
Roller Coating | Ether-based polyurethane |
PU Coating Hardness | 93 Shore A |
Roller A | Ø100 × 40 mm |
Roller B | Ø100 × 20 mm |
Housing Dimensions | L: 166 mm, M: 125 mm, K: max. 220 mm |
Approx. Weight | 5.5 kg |

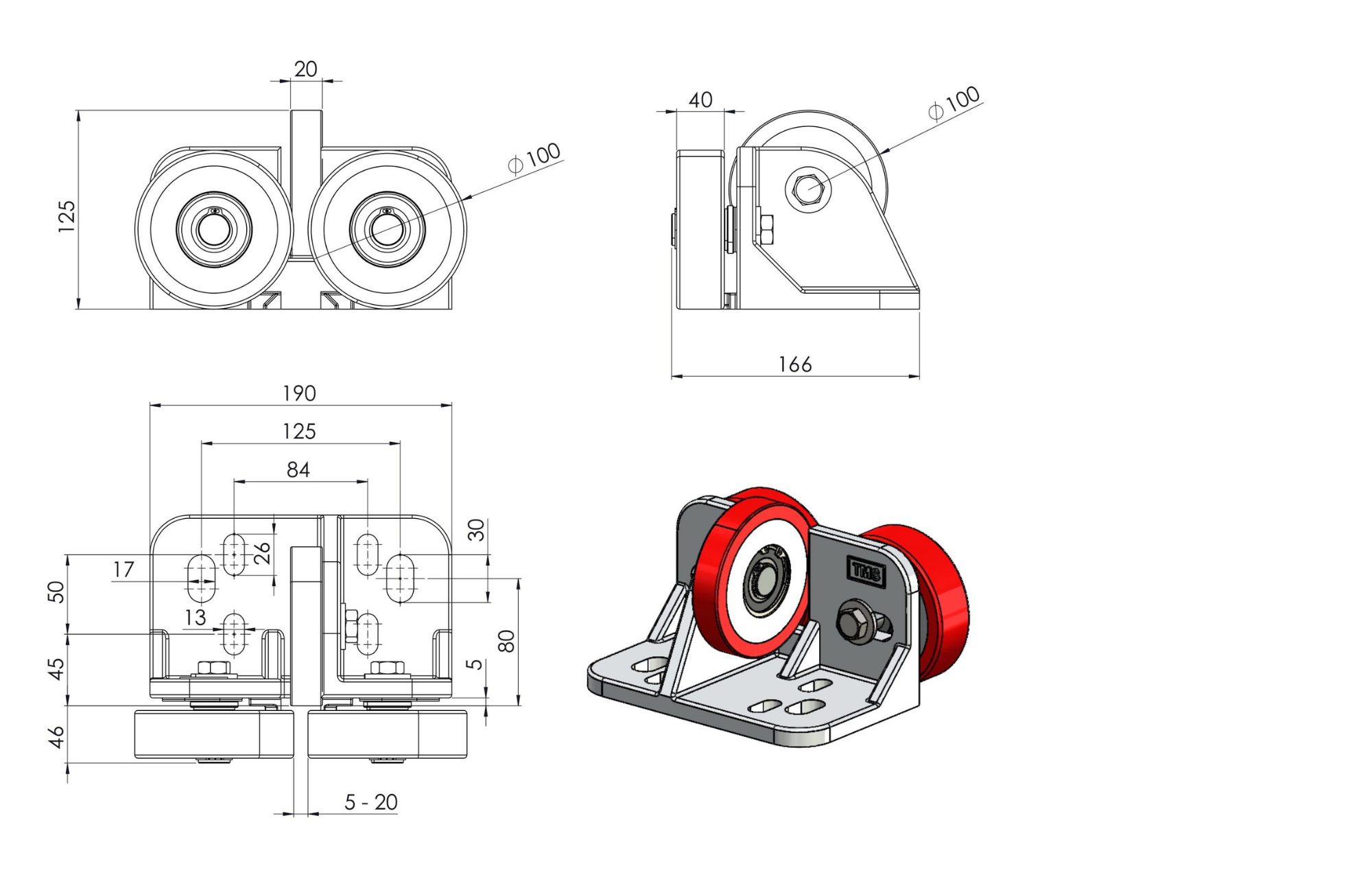

Roller Guide KP-2 Technical Drawing
